igh heat resistant Glass/Epoxy laminates for Solder pallet：

高級防靜電石無鉛是由電子級進口玻璃布與PI等耐高溫復合樹脂、納米分散材料等制成的優異復合材料，與進口合成石綜合競比具有更好的性價比優勢。在265-300℃的間接高溫環境中具有極好的尺寸穩定性、高抗腐性、低導熱性、防靜電性、不易燃性。作為載具適合SMT波峰焊、回流焊工藝中的焊接保護載具之用。使用中易加工、不破裂、不起泡、不脫層、抗變形、不刺癢人體，可按使用規格任意裁切鉆孔開槽。

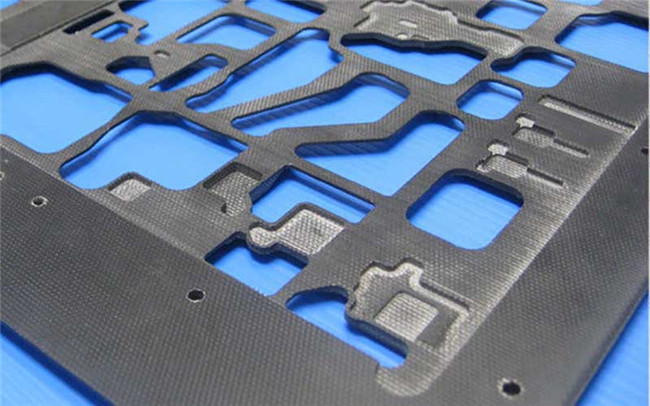

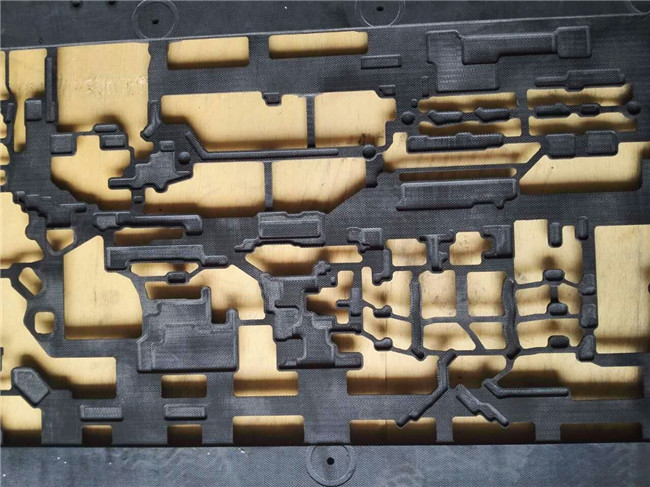

Lead-free Composite Sheets are composite material made of imported glass fiber,PI temperature resistance composite resin and nanometer dispersed material. Price is more competitive than imported products. In the indirect high temperature environment of 265-300℃, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability. Suitable for soldering protection in wave soldering and reflow soldering. Easy to process, no cracking, no peeling, no burr and no irritation to human body. Customers can freely design the carriers according to their specific needs.

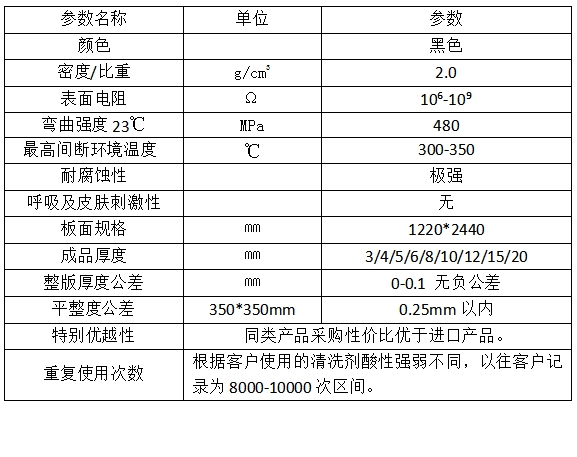

產品技術性能參數
